MACHINE DESCRIPTION:

The MEGATURN NEXUS 1600M CNC vertical turning center excels in the heavy-duty cutting of large, low-to-medium profile, tough-to-machine workpieces such as those found in the construction machinery and jet engine industries.

With a machine configuration that includes rotary tool milling (M) capability, the MEGATURN NEXUS 1600M can combine turning and secondary machining operations to improve accuracy and increase productivity through reduced set ups and workpiece handling.

MACHINE CHARACTERISTICS:

• Easily machines stainless steel, titanium and other alloys
• Rotary tool milling enables turning and secondary machining
• Powerful, rigid, high-torque integrated main drive motor/spindle with maximum speed of 350 rpm and maximum torque of 7,405 ft-lbs.

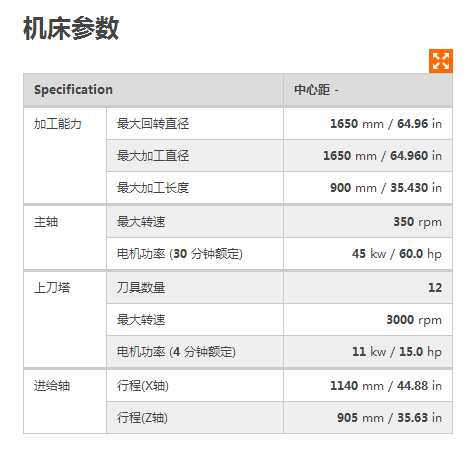

• Accommodates workpieces measuring up to 64.96" in diameter, 35.43" high and weighing as much as 11,023 lbs.
• 12-tool drum-style turret provides rapid tool indexing
• MATRIX NEXUS 2 CNC Control simplifies metalworking operations
